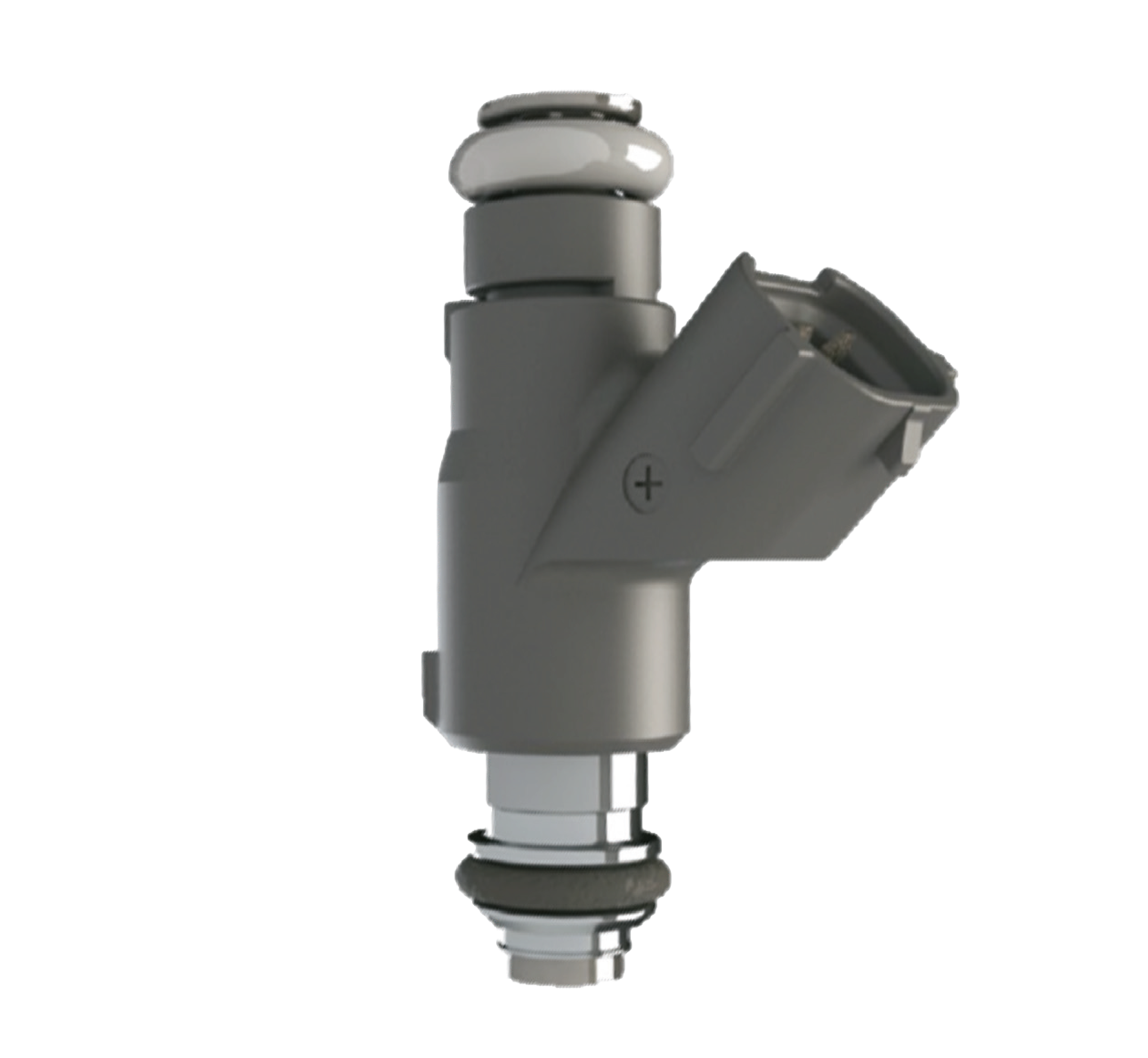

Hydrogen Fuel Injector – MULTEC 3.5 PFI
ECU controlled low pressure fuel injector for hydrogen internal combustion engines and fuel cells.
Product Information
-
Features
- Compact injector design with high impedance coil
- Compatible with standard PFI injector packaging
-
Design Features
- Direct acting single coil solenoid
- Inward opening control valve
- Elastomer valve seal for good sealing performance and low noise
- Optimized internal flow path for high mass flow in compact package
- No external lubrication is required
-
Performance
- Nominal pressure range: 2 to 10bar gauge
- Static flow range: up to 1.58 g/s at 10bar gauge
- Compatible with low cost saturated switch or peak and hold drivers
- Validated to 480M cycles in fuel cell grade hydrogen
-
Benefits
- Compatible with CNG and hydrogen gases
- Conventional PFI fuel rail designs can be used with the injector
- Injector can be easily adapted to existing powertrains
- Injector is certified to European ECE R110 performance and safety standards
- Compatible with standard OBD strategies
