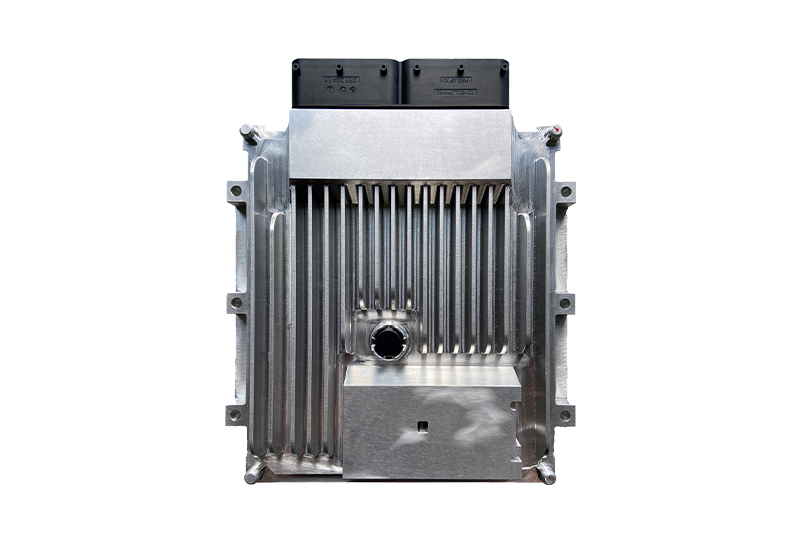

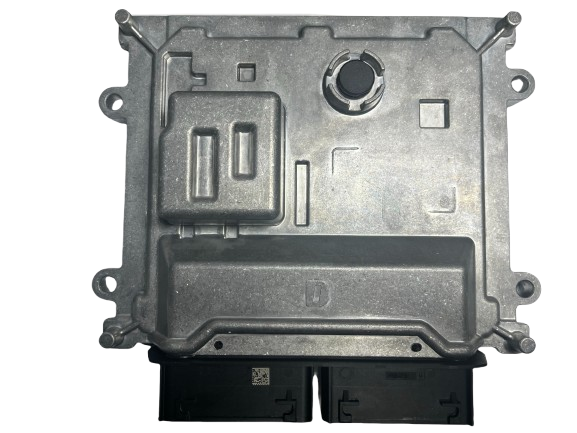

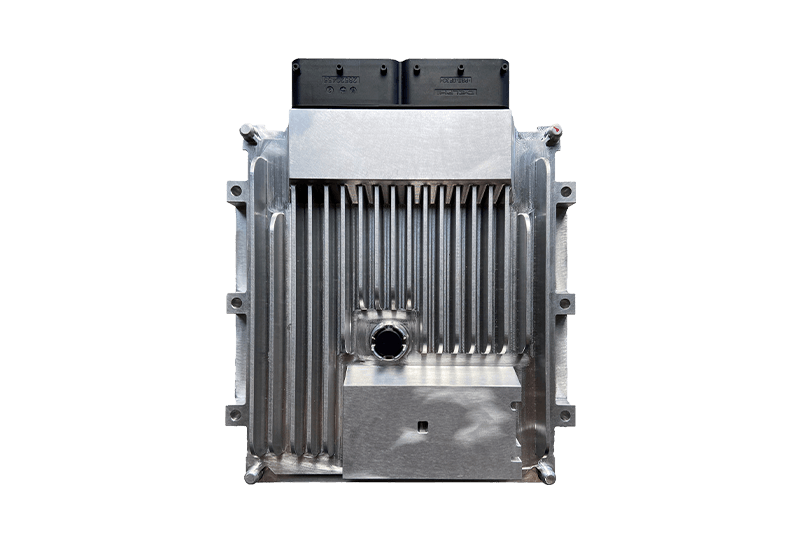

Electronic Control Unit – PECU300
PECU300 is a control unit able to drive the full portfolio of PHINIA products for hydrogen, gasoline, and diesel systems, for passengers cars and commercial vehicles.
Home
Technologies
Systems Integrations and Calibration Systems
Systems Integrations and Calibration Systems
Electronic
Control Unit
PECU300
Product Information
-
Features
- Up to 6 cylinder capability
- For 12V or 24V battery voltage
- For chassis mounting or on-engine mounting through bracket + AVM (Anti-Vibration Mount)
- Operating range: -40°C / +105°C Ambient Temperature
- Sealing: IP6K9K
-
Design Features
- 196-way header
- Die-cast aluminium housing
- Vent-snap fit
- 6-layer FR4 PCB
- Dual side SMT
- Infineon TriCORE™ AURIX™ TC39x series micro-controller
- Highly integrated design using ASICs allowing board space reduction and configuration flexibility
- Development interfaces: ETAS X-ETK and ATI A8
-
Performance
- Max System Power allowed: 420W @10V
- Large range of general-purpose inputs: Analog, Digital, Frequential, SENT
- Large range of general-purpose outputs: LSD, HSD, combined LSD/HSD interfaces with current monitoring
- 6 Fuel Injector drivers for H2, Gas, Diesel systems
- 6 Spark drivers for Smart Coils
- Pressure regulation valve drivers for H2, Gas, Diesel systems
- 6 additional Injector drivers to manage: 6 Water Injectors or 3 Lubrication Injectors for H2 or 3 SCR Dosers
- LSD outputs to drive the H2 Supply System (up to 4 tanks)
- Up to 3 Phase-Boost 65V switched power supply for
- injector drivers to allow highly loaded multi-injection
- profiles. Nominal set-up with 2 Phase-Boost.
- 3 Knock sensor or accelerometer sensor interfaces
- 2 Linear O2 interfaces compliant with BorgWarner, Bosh, NTK and Denso sensors
- 2 Binary O2 sensor interfaces
- 4 configurable VR/HE sensors interfaces
- 4 H-Bridges
- 4 CAN transceivers: 2 CAN with FD Flexible Data and PN Partial Networking and 2 CAN with FD only. Support J1939 & J1979, UDS, ISO 27145, 11898-2 protocols
- 2 LIN transceivers
- Internal barometric + temperature sensors
- Functional safety: ISO26262 ASILC
- Cyber security: ISO 21434 and R155
-
Benefits
- Generic ECU able to drive all PHINIA Fuel Systems products for H2, Gasoline and Diesel.
- Compliant with all vehicle supply architecture: 12V / 24V, T87 supply with external power relay or T30 supply with internal power relay
- Suitable for a wide range of applications from Passenger Cars to Commercial Vehicles (Medium Duty and entry range of Heavy Duty)
- Available to support customer advanced developments with PHINIA platform software.
